These remarkable little Yamaha outboards have won the hearts of of owners around the world because, thanks to Yamahas pioneering technology they've found a capable, reliable, stylish pick up and go 4 stoke outboard that's a joy to use and a pleasure to own.
The class leading Yamaha 2.5hp four stroke outboard engine features:
- Proper gear lever operated clutch facility.
- Marine quality twist grip throttle.
- Full water cooling.
- 360° steering.
- Smoother, quieter and reliable operation.
The Yamaha F2.5 outboard engine is the most refined single cylinder four stroke on the market. As it is a four stroke engine this makes it pefect for inland and coastal water, where its low noise levels are fully appreciated. The Yamaha F2.5hp outboard engine exudes quality and is the best constructed engine in this class. Easy to carry, able to be laid down on its front or on its side, unlike all its competitors which can only laid on one side, all help to make this baby of the Yamaha range the number one choice. The Yamaha F2.5A hp outboard engine is the standard shaft model, and for those clients who's boats have a higher transom, the long shaft version is also available.
Описание Yamaha F-2.5 AMHS (Rus)
|

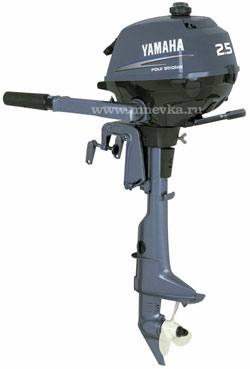

Yamaha Outboards - F2.5hp 4 Stroke
Specifications | Yamaha F2.5 AMHS |
Engine type | 4-Stroke |
Number of cyclinders / Configuration | 1 |
Bore x Stroke | 54 x 31.5 mm |
Displacement | 72 cm3 |
Full throttle range | 5250-5750 rpm |
Prop shaft output at mid range | 1.8 kW / 5500 rpm |
Weight with propeller F2.5AMHS: | 17.0 kg, F2.5AMHL: 17.5 kg |
Recommended boat transom height | S: 381 mm, L: 508 mm |
Carburettors | 1 |
Fuel tank capacity | 0.9 litres |
Oil pan capacity | 0.4 litres |
Lubrication | Splash |
Ignition / Advance system | TCI |
Gear ratio | 13:27 |
Starter system | Manual |
Steering | Tiller handle |
Throttle and shift controls | Twist grip F-N/slide shift |
Trim & tilt method | Manual |
Trim angle | 0°,4°,8°,12° |
Number of Propeller options | 5 |
Size range Propeller | 5 x 8 1/4 ins |
|
